> R915I03

Product Name:R915I03

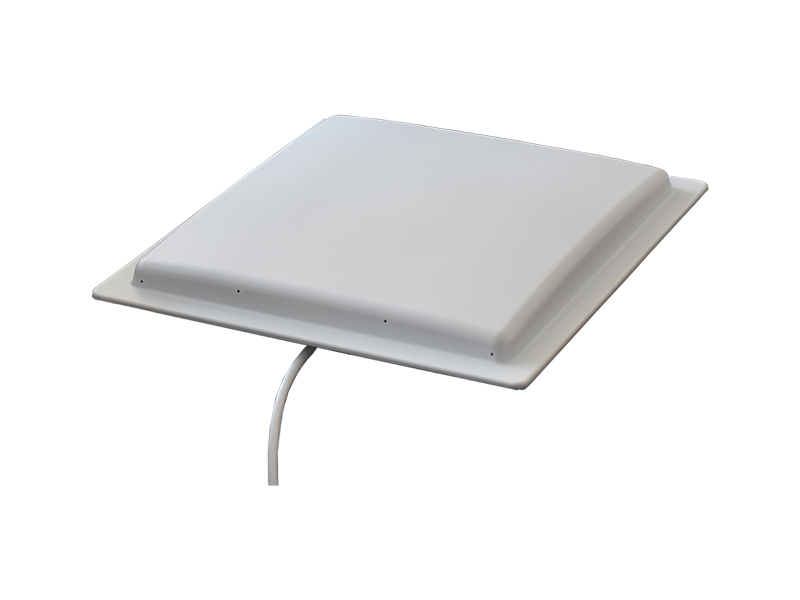

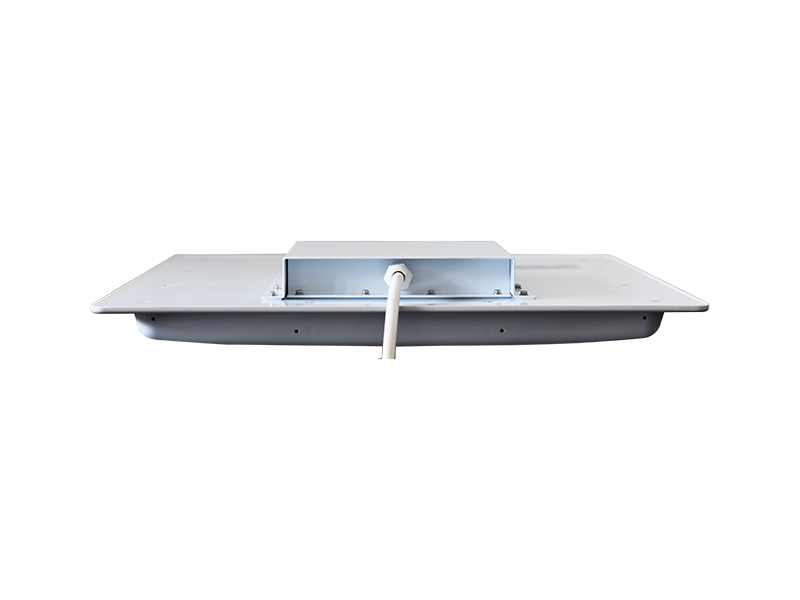

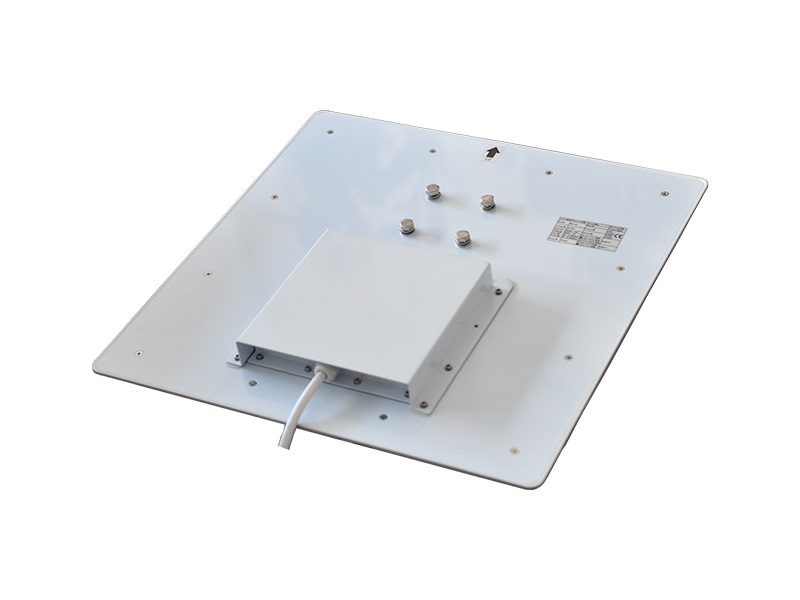

Product introduction:NRP-R915I03 is a UHF all-in-one reader, modular design, waterproof, and can work outdoors. This product is developed based on the Impinj Indy R2000 radio frequency chip and has super-strong multi-card recognition capabil

product details

Basic Information
BrandEnruipu
Place of OriginShenzhen
Card / Tag typeUHF 6C
Reading distance15m
Power supply12W
Frequency902~928MHz
Tag reading speed2ms
Main market
Product typeUHF Intergrated reader
ModelNRP-R915I03

Specification
ModelNRP-R915I03
ProtocolISO-18000 6C
Frequency902~928MHz or 865~868MHz
Working modeFHSS or Fixed
RF output0~33dBm
RF chipImpinj Indy R2000
Multi-card≥1000 tags
Reading speed2ms
Reading modeSingle, continuous, trigger, software control .etc
Reading distance15m,12dBi gain antenna
Reading promptLED light or buzzer
InterfaceSerial port, Wiegand, Ethernet port, WiFi, 4G
Antenna typeBuilt-in linear polarized antenna, 8dBi gain
Power supplyDC +12V
Size445*445*90mm
Packing size600*450*100mm
Net weight2.0kg
Gross weight2.5kg
Working TEMP-20℃ ~ +80℃
Storage TEMP-30℃ ~ +85℃

Interface definition
01RedDC 0~12V positive of power supply
02Yellow0V negative of power supply
03GrayEnabled, short-circuited with Black, reader works
04BlueWiegand data cable 1
05GreenWiegand data cable 0
06Black0V signal ground
07BrownRS232 TXD
08WhiteRS232 RXD
09PurpleNC1 normally open relay 1
10OrangeCOM1 common relay 1
11Light blueNC2 normally open relay 2
12PinkCOM2 common relay 2
13Light greenRS485-B
14Light brownRS485-A
