> R915C02TM

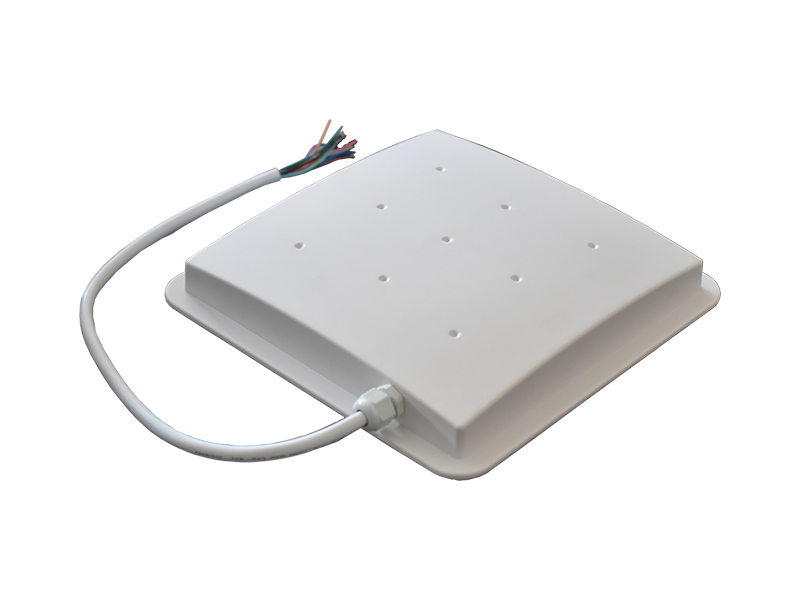

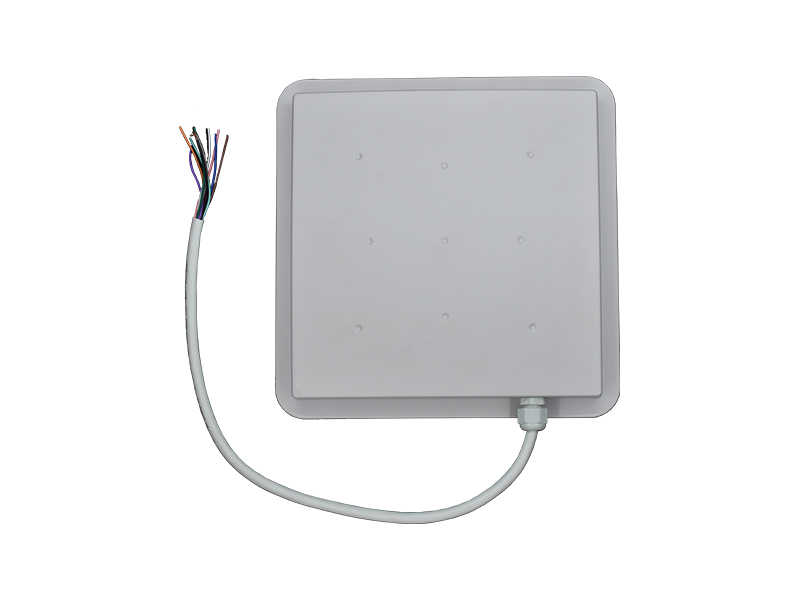

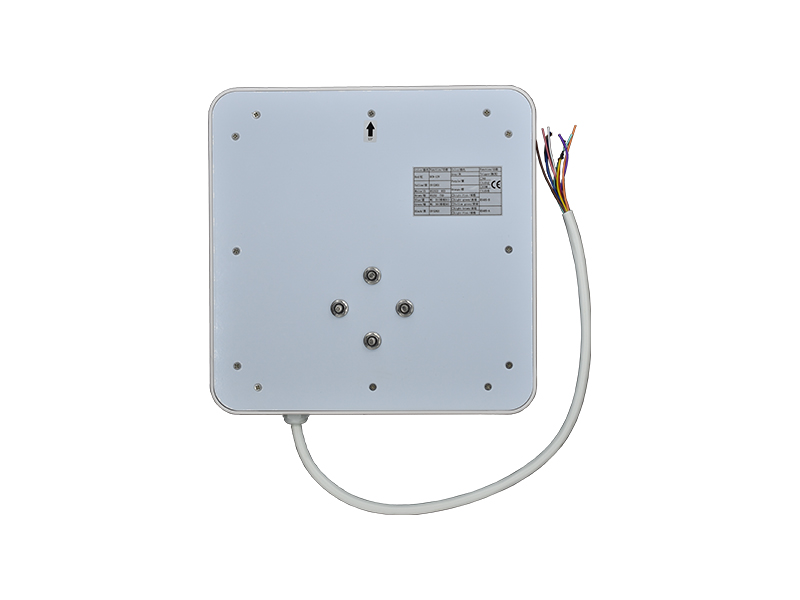

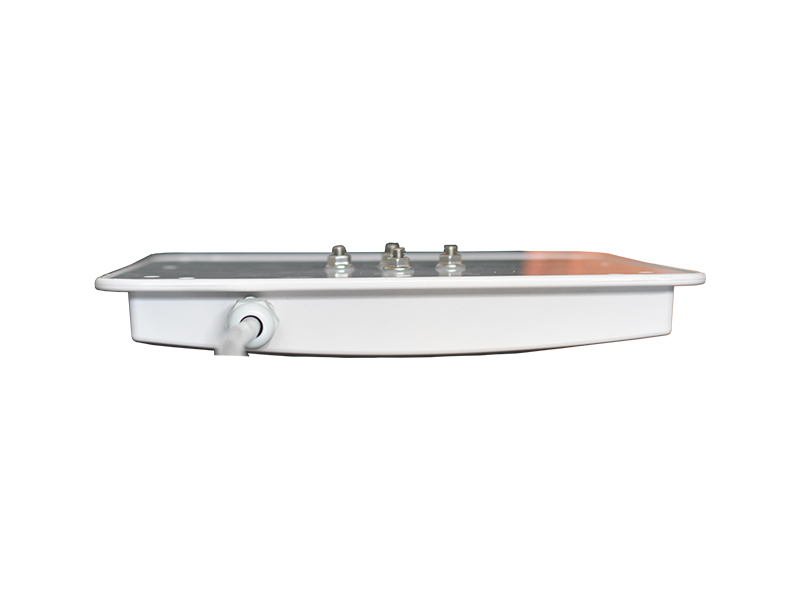

Product Name:R915C02TM
Product introduction:R915C02TM supports EPC Gen2 protocol, supports UHF temperature measurement labels. The card reading distance is 0~8 meters, the multi-card recognition is 300 cards/second, and the card reading speed is 350 times/second.

product details

Basic Information
BrandEnruipu
Place of OriginShenzhen
Card / Tag typeUHF 6C
Reading distance10m
Power supply12W
Frequency902~928MHz
Tag reading speed2ms
Main market
Product typeUHF Intergrated reader
ModelNRP-R915C02TM

Specification
ModelNRP-R915C02TM
ProtocolISO-18000 6C, Support UHF temperature measurement label
Frequency902~928MHz or 865~868MHz
Working modeFHSS or Fixed
RF output0~30dBm
Multi-card>300 tags/second
Reading speed2ms
Reading modeSingle, continuous, trigger, software control .etc
Reading distance10m,8dBi gain antenna
Reading promptLED light or buzzer
InterfaceSerial port, Wiegand, Ethernet port, WiFi, 4G
Antenna typeBuilt-in linear polarized antenna, 8dBi gain
Power supplyDC +12V
Size258*258*40mm
Packing size300*260*60mm
Net weight1.6kg
Gross weight2.1kg
Working TEMP-20℃ ~ +80℃
Storage TEMP-30℃ ~ +85℃

Interface definition
01RedDC 0~12V positive of power supply
02Yellow0V negative of power supply
03GrayEnabled, short-circuited with Black, reader works
04BlueWiegand data cable 1
05GreenWiegand data cable 0
06Black0V signal ground
07BrownRS232 TXD
08WhiteRS232 RXD
09PurpleNC1 normally open relay 1
10OrangeCOM1 common relay 1
11Light blueNC2 normally open relay 2
12PinkCOM2 common relay 2
13Light greenRS485-B
14Light brownRS485-A
